鑫永傳K77減速電機型號有哪些？附安裝尺寸圖

K77斜齒輪減速機型號：K77DRS71M4,K77DRS80M4,K77DRS90M4,K77DRS100M4,K77DRS112M4,K77DRS132M4,K77DRS160M4

GK77-Y0.37-4P,GK77-Y0.55-4P,GK77-Y0.75-4P,GK77-Y1.1-4P,GK77-Y1.5-4P,GK77-Y2.2-4P,GK77-Y3-4P,GK77-Y4-4P,GK77-Y5.5-4P,GK77-Y7.5-4P,GK77-Y11-4P

K77減速機能匹配的電機功率范圍：0.37KW-11KW

K77減速電機減速比范圍：7.24-192

可配多種輸入方式的動力源

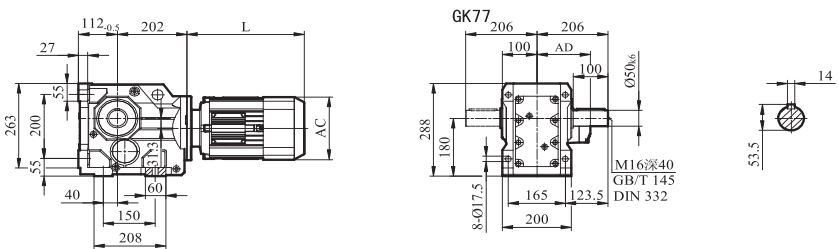

下面是K77減速機的安裝尺寸圖，需要高清尺寸或者是配伺服電機的請聯系客服或撥打18029026613

K77減速機：http://m.phpx.com.cn/products/195.html
