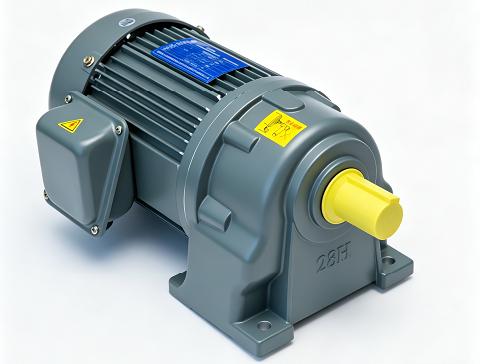

GH32/ CH32減速電機

CH32與GH32減速機為同型號，不同廠家型號之間可能有差異，具體請核對尺寸圖或者是咨詢右邊在線客服

CH32縮框型減速電機型號：CH32-750W-125SB、CH32-750W-140SB、CH32-750W-160SB、CH32-750W-180SB、CH32-750W-200SB

CH32-1.5KW-40SB、CH32-1.5KW-50SB、CH32-1.5KW-60SB、CH32-1.5KW-70SB、CH32-1.5KW-80SB、CH32-1.5KW-90SB、CH32-1.5KW-100SB

CH32標準型減速電機型號：

CH32-400W-100SB、CH32-400W-120SB、CH32-400W-140SB、CH32-400W-160SB、CH32-400W-180SB

CH32-400W-200SB

CH32-750W-30SB、CH32-750W-40SB、CH32-750W-50SB、CH32-750W-60SB、CH32-750W-70SB、CH32-750W-80SB、CH32-750W-90SB、CH32-750W-100SB、CH32-750W-120SB、CH32-750W-140SB、CH32-750W-150SB

CH32-1.5KW-3SB、CH32-1.5KW-5SB、CH32-1.5KW-10SB、CH32-1.5KW-15SB、CH32-1.5KW-20SB、CH32-1.5KW-30SB

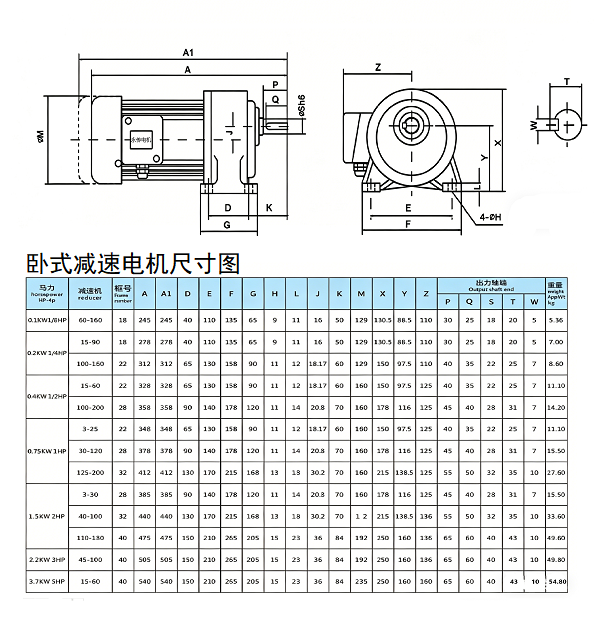

下面是這個CH系列減速電機的尺寸圖，需要具體型號的尺寸圖請聯系客服

更多其他減速電機請查看http://m.phpx.com.cn/
